Automatic Liquid Filling Machine Automatic Filling Equipment
Main Parameters
| Filling Nozzle: | 2-12(Optional) |
| Filling Capacity: | 100-1000ml |
| Filling Speed: | 20-60pcs/min |
| Working Voltage: | 220V,50/60HZ |
| Power: | 1-3KW |
| Air Consumption: | 4kgs x 30liter/min |
| Dimension: | 3000 x 900 x 2100mm(L*W*H) |
| Weight: | 350KG |
Liquid filling machine principle
Filling machine: Magnetic pump (also known as magnetic drive pump) is mainly composed of pump head, magnetic drive (magnetic cylinder), motor, base and other parts. The magnetic drive of the magnetic pump is composed of an outer magnetic rotor, an inner magnetic rotor and a non-magnetic isolation sleeve. When the motor drives the outer magnetic rotor to rotate through the coupling, the magnetic field can penetrate the air gap and the non-magnetic material isolation sleeve, and drive the inner magnetic rotor connected to the impeller to rotate synchronously, realizing the non-contact synchronous transmission of power, which will easily leak. The dynamic sealing structure is transformed into a static sealing structure with zero leakage.
Features:
1. This multifunctional liquid filling machine is suitable for filling containers of different specifications, and has the characteristics of simple and convenient switching.
2. This model can choose the number of filling heads according to the needs.
3. The operation interface can display the production status, operation procedures, filling methods, etc. of the machine; the screen is intuitive, the operation is simple, and the maintenance is convenient.
4. Each filling head is equipped with a bottle clamping device, which can ensure the accurate positioning of the material.
Application range of liquid filling machine:
The material of the contact part between the liquid filling machine and the material is imported 316L material, which can resist various corrosive, low-viscosity and particle-free liquids, such as: various pharmaceuticals (medicated oil, medicinal wine, alcohol, eye drops, syrup), chemicals (solvents) , acetone), oils (edible oil, essential oils), cosmetics (toner, makeup remover, spray), food (can withstand 100 degrees high temperature, such as milk, soy milk), beverages (juice, fruit wine), condiments (soy sauce vinegar sesame oil) ) and other non-granular liquids; high and low foam liquids (care solutions, detergents).
Product Tags:
|
|

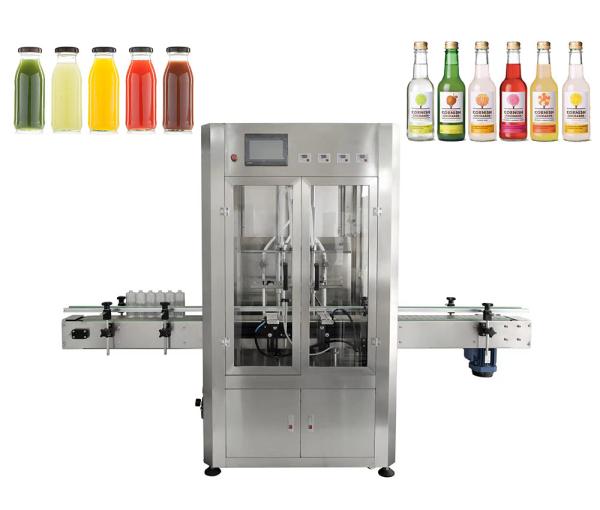

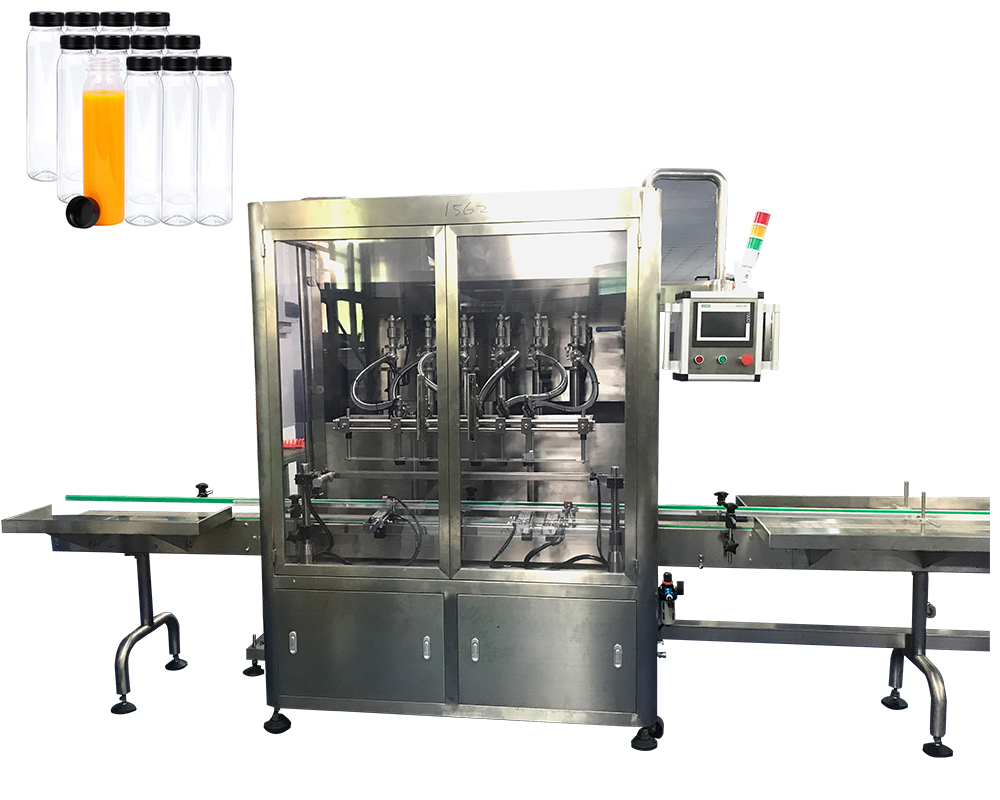

Liquid Filling Machine Automatic Filling Equipment Images
|
