Liquid Packaging Machine Fully Automatic Rotary Dairy Sauce Viscous Liquid
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. |
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag |
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
| Measurement accuracy | *≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 1.5KW 380V 50/60Hz | 1.8KW 380V 50/60Hz | 2KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1300kg | 1500kg |
| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. |
| Applicable scope | Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc |
(We can provide you with exclusive customized services according to your needs!)

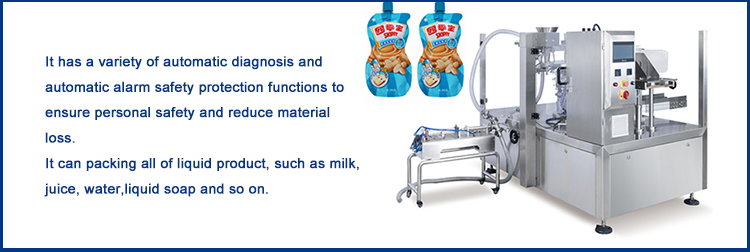

Liquid packing machines are generally the machinery used by manufacturers for liquid packaging of products. Liquid packing machines can be used to package: beverages, dairy products, viscous liquids, cleaning liquids, personal care liquids, etc. Our fully automatic bag feeding liquid packaging machine is an automatic equipment specially used for packaging prefabricated pouches with high appearance requirements.

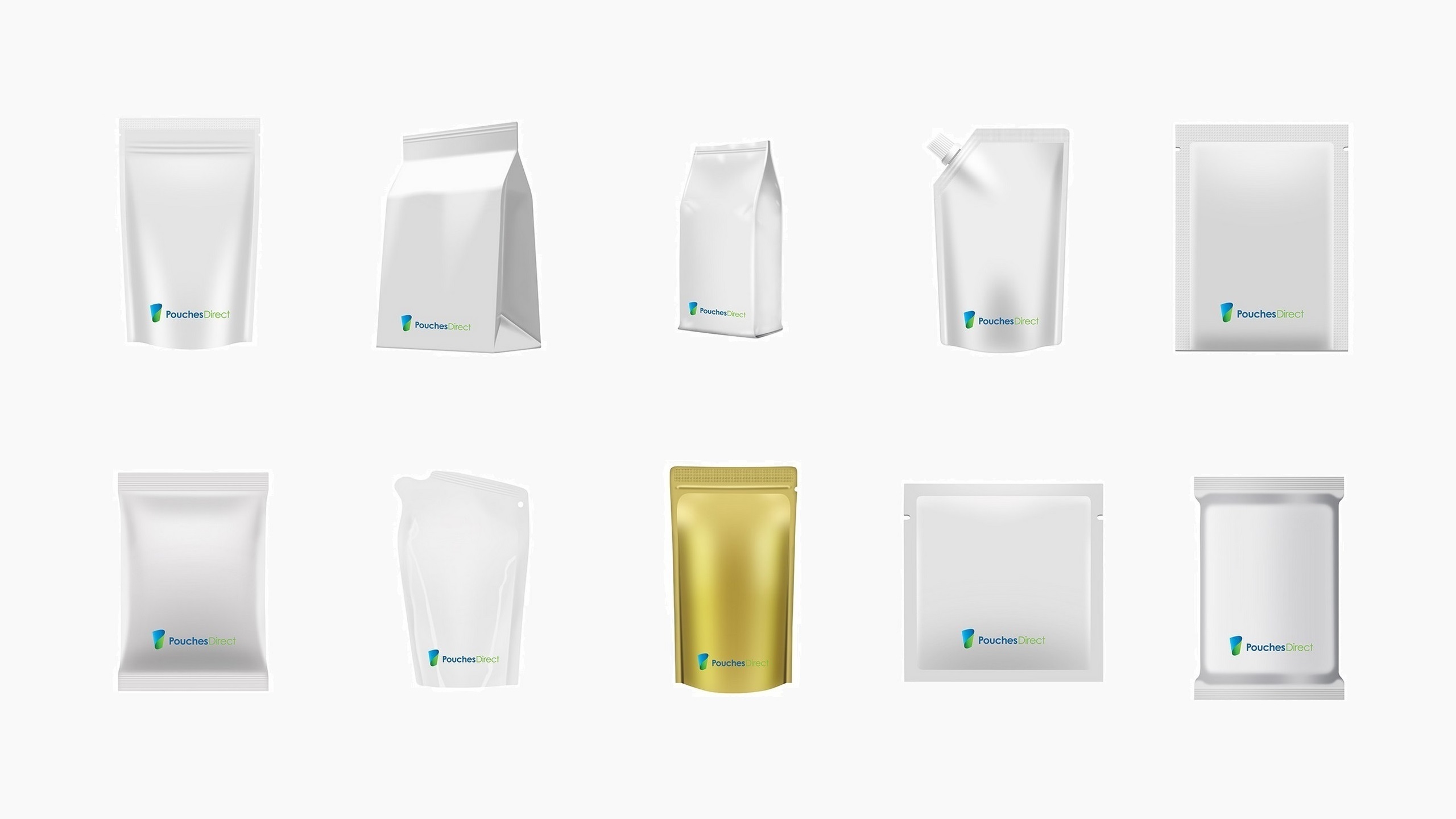

Nowadays, customers are more and more interested in the packaging of products. A good packaging pouch can not only improve the grade of the product, but also increase the customer's desire to buy. Our bag-feeding liquid packing machine can easily meet the packaging of various premade pouches. Common prefabricated bag types are: stand-up pouch, zipper pouch, flat bag, spout pouches, special-shaped bag, M bag, etc.

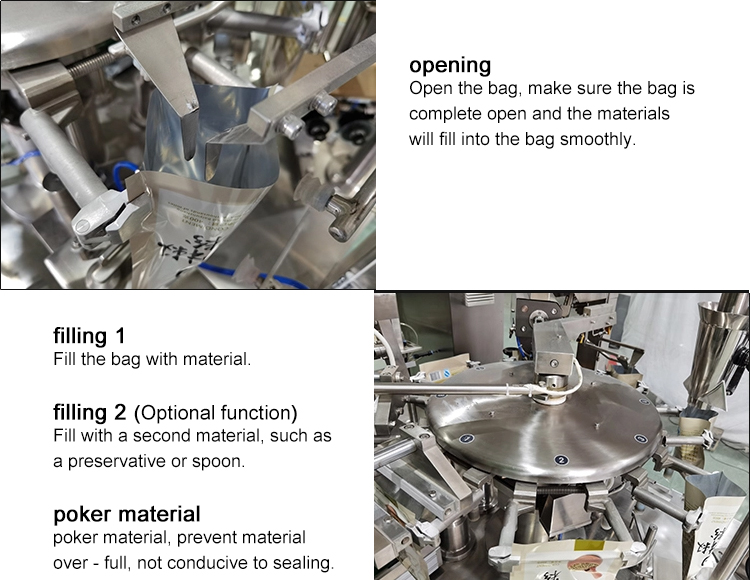

Our bag-feeding liquid packing machine is composed of eight-station host + paste pump/liquid pump. A series of actions such as opening, printing, filling and sealing of the packaging pouch are completed through multi-station. The multifunctional liquid packaging machine can be equipped with a one-key adjustment function. According to the specifications and weight of the production materials, the bag width can be adjusted automatically with one key, and eight sets of machine clamps can be adjusted synchronously. Various product adjustment parameter formulas can be stored for subsequent use.
