Noodle Packaging Machine Eight-Station Rotary High-Speed 316/304 Stainless Steel Food Packaging Machine Anti-rust Oxidation
Noodle packaging machine is a kind of equipment specially used for automatic packaging of noodles, which is widely used in food processing industry. It can measure, pack, seal and pack noodles efficiently and accurately, improve production efficiency, reduce labor costs, and ensure the hygiene and consistency of packaging.
Main functions
Automatic measurement: Automatically measure noodles according to preset weight or quantity.
Automatic bagging: Put the measured noodles into the packaging bag.
Automatic sealing: Heat or cold seal the packaging bag to ensure sealing.
Coding function: Print production date, batch number and other information on the packaging.
Automatic conveying: Convey the packaged products to the designated location for subsequent boxing or stacking.
Equipment features
High efficiency: Automated operation, fast packaging speed, suitable for large-scale production.
Precision: Accurate measurement, reduce errors, and ensure that the weight of each bag of noodles is consistent.
Hygiene: Food-grade materials are used to meet food safety standards.
Flexibility: It can adapt to noodles and packaging bags of different specifications.
Easy operation: PLC control system is adopted, the operation interface is friendly and easy to maintain.
Main components
Measuring device: used to accurately measure the weight or quantity of noodles.
Packaging material conveying system: convey packaging materials (such as plastic film or paper bags) to the specified location.
Sealing device: seal the packaging bag to ensure sealing.
Coding machine: print relevant information on the package.
Control system: PLC or microcomputer control to achieve automatic operation.
Conveyor belt: convey the packaged products to the next process.
Application scenario
Noodle packaging machines are widely used in food processing plants, noodle production lines, grain and oil processing enterprises, etc., especially suitable for production environments that require large-scale and high-efficiency packaging.
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. |
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag |
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
| Measurement accuracy | *≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 2.5KW 380V 50/60Hz | 2.5KW 380V 50/60Hz | 3.7KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1400kg | 1500kg |

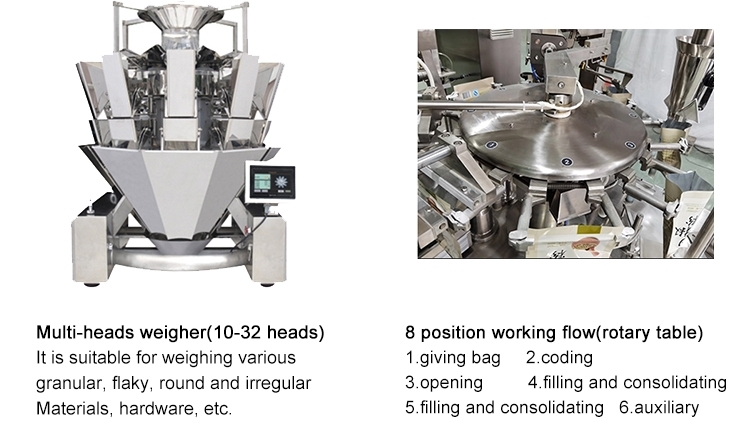

| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. |
| Applicable scope | Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer, etc |
(We can provide you with exclusive customized services according to your needs!)
|
|
